Advantage:

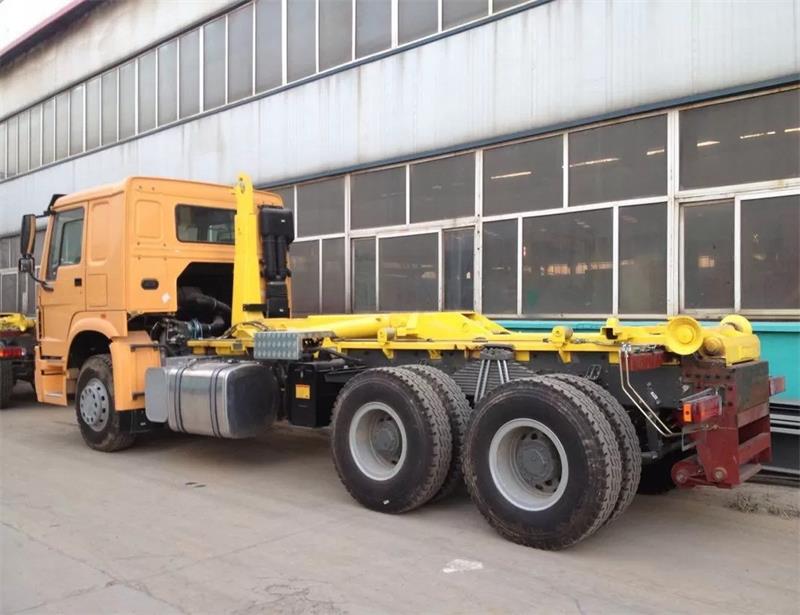

Detachable carriage garbage truck, also known as SINOTRUK 6x4 16T Hook lift truck, is equipped with a special vehicle hydraulic loading and unloading mechanism, will be dedicated to the towing carriage car or inclined to a certain angle to unload the garbage, and can be used for the carriage to unload, collection and transportation of garbage.

The detachable carriage garbage truck garbage collection collect and transport functions, using the "self-contained discharge" mode of operation; to realize the separation, a car can be equipped with multiple compartments, flexible, improve the utilization rate of equipment and vehicles, reduce operating costs; the area is small, no construction or only simple construction, economical and practical. Detachable carriage garbage truck with its easy handling, high utilization rate, fast and efficient features have been widely used in the field of sanitation in China, mainly for the garbage transfer station, garbage disposal plant, the residents living garbage collection points in places such as garbage transport.

Specification:

Model	ZZ1257M4347W		Max. Lifting Force	17t
Engine	WD615.62 Euro II		Height of Hook	1570mm
	266HP		Lifting Up Time	≤40s
Gross Vehicle Weight	25000kg		Lifting Down Time	≤50s
Dead Weight	11070kg		Discharging Time	≤50s
Tyres	12.00R20		Discharging Angle	50°
Cab	HW76 Air-condition		Length Range of Garbage box (mm)	5500--6400
Rated engine power	213kW/2200r/min
Front Axle	HF9		Hydraulic System Pressure	30MPa
Rear Axle	HC16
Transmission	HW19710		Locking Device of Garbage Box	external hydraulic locking
Lock type of reardoor	Mechanical type
Overall Dimension (mm)		Changeable according to the body
