Advantage:

20m³ SINOTRUK HOWO A7 6x4 20000 liters fuel tank truck for PH is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil transportation and storage.

Competitive Advantage:
1). Our Oil tank truck with advanced butt welding technology, after the forming of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity, safe and stable vehicle characteristics;
2). Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance.
3). Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck, insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
4). External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5). the key parts adopt the world's top technology products
6). based on strong technical support and top level technology make the trucks with high quality and more reliable

Specification:

Model		ZZ1257N5247D1
Dimension (L×W ×H) (unloaded) (mm)		11500x2550x3400mm
Tank  Volume (m3)		20m³
Wheel base (mm)		3800+1350
Max speed (km/h)		90
Curb weight (kg)		10870
Loading Weight (kg)		25000
Engine (Steyr technology, made in China)	Model	D10.38-40, water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power	380HP
	Emission	EURO 4
Fuel tanker capacity (L)		400
Transmission	Model	HW19710，10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	ZF
Front axle	Steering with double T-cross section beam  HF9 Drum
Rear axle	HC16 16000kg Pressed axle housing, central double reduction with differential locks between axles and wheels ;
Tyre	12R22.5, with one spare tire
Cab	A7W (T7H-W new front face) low roof with single bed with Air-condition) No ABS

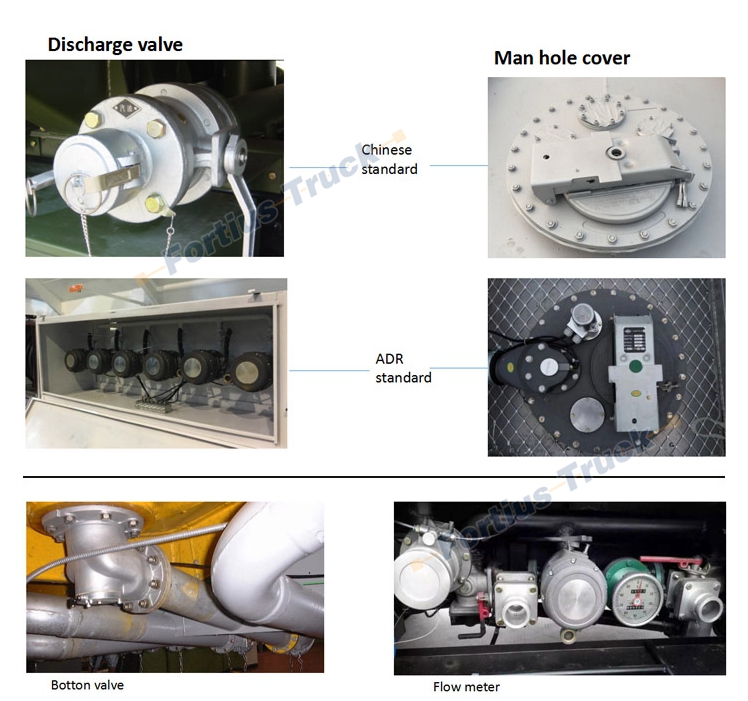

Other	With PTO, Pump, Oil gun, Fire extinguisher and Pipe (Optional) 5 Compartments
